MOLDING & CORES - PROCESSES, MATERIALS & SIZES

Eck Industries is well-known for its vast offering across casting processes, tool, pattern and core materials and sizes.

    Sand casting at Eck Industries

    MOLDING PROCESSES


    • Air Set (No Bake)
    • Permanent Mold and Semi-Permanent Mold
    • Low Pressure
    • Shell Casting

    AIR SET (NO BAKE)

    • 3 molding floors
    • Mold boxes up to 10' x 6'
    • Casting weights up to 750 lbs

    PERMANENT & SEMI-PERMANENT MOLD

    • Tool size up to 3' x 3'
    • Casting weights up to 200 lbs

    LOW PRESSURE MOLDING

    • Tool size up to 40" x 40"
    • Casting weights up to 200 lbs

    LOW PRESSURE PRECISION SAND

    • Sand molds up to 42" x 50"
    • Casting weights up to 400 lbs
    core for water jacket

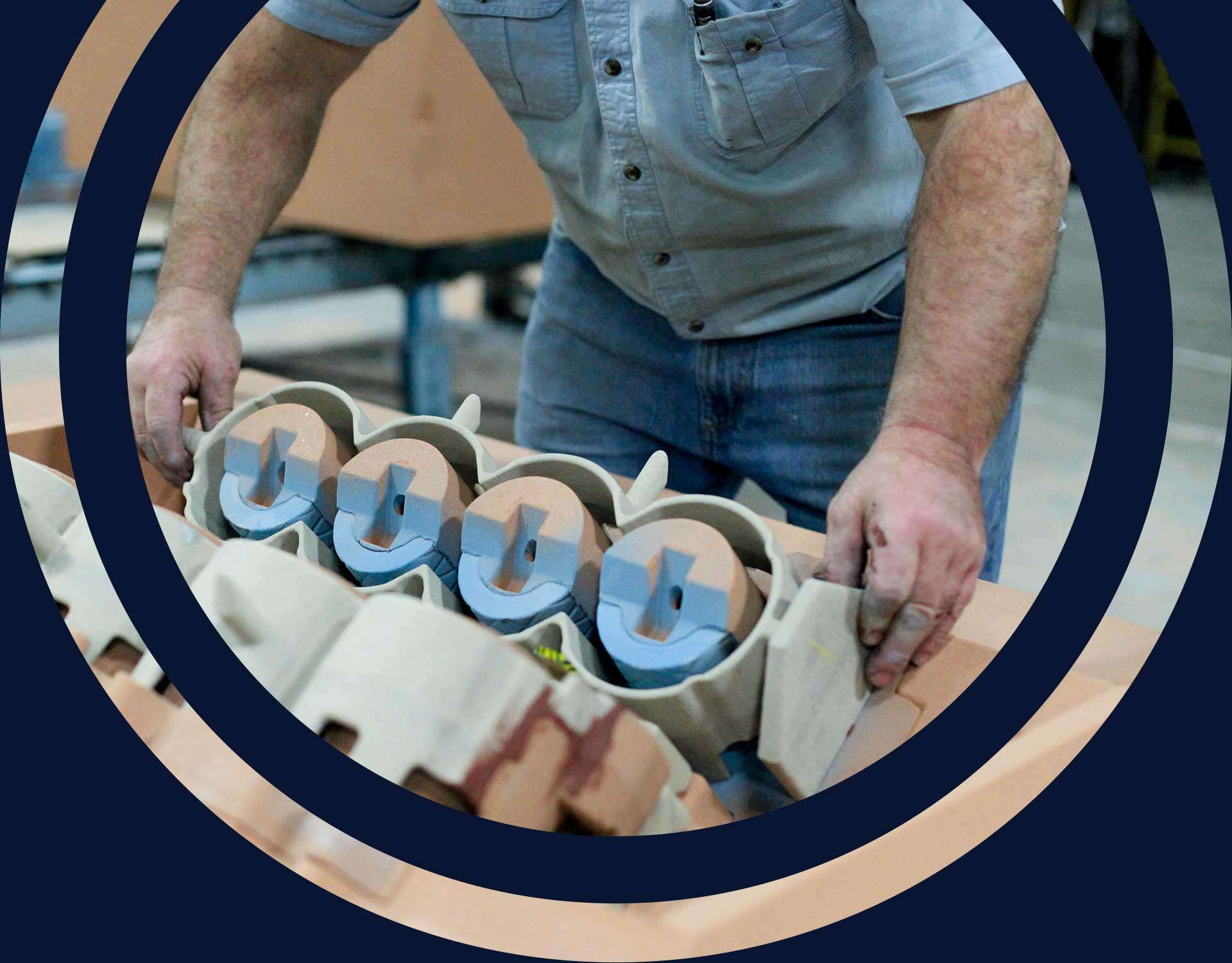

    CORE MAKING

    AIR SET

    • Core boxes up to 10' x 6'
    • Core weights up to 1000 lbs

    SHELL

    • Core boxes up to 20" x 30" x 36"
    • Core weights up to 60 lbs

    ISO-SET

    • Core boxes up to 20" x 30" x 36"
    • Core weights up to 60 lbs
